Author Topic: SUZUKI SWAPS  (Read 4910 times)

0 Members and 1 Guest are viewing this topic.

Offline Dungar Pilot

  • C-Grade
  • **
  • Posts: 118
    • View Profile
SUZUKI SWAPS
« on: November 24, 2022, 10:58:19 AM »
Hi Everyone,

Up for swaps is my SUZUKI surplus parts, my expertise is limited to reading labels so any help identifying parts is greatly appreciated. The brake plate has a pointed S inside and needle rollers in the centre so I am not sure what it is off? The tank is missing the key and looks rust free inside and I am unsure what it is off? It feels light for it's size and does NOT have a loose rusty sound when rotated. The Clutch cover is I think for a TS or RL 250?
The front mudguard is lacking any Trade Mark but looks similar to a Mates TM 75 from way back in the 1970s that I once rode?




My interests in Trials is fairly diverse as I have Italian, Japanese and Spanish bikes from 1970 to 1986 Post Classic era. Your parts might help me get one of my bikes going and I like to ride them all!

Thanks for looking

Offline pokey

  • Legend
  • *****
  • Posts: 1449
  • Arse .. Elbow. Know the difference
    • View Profile
    • FB
Re: SUZUKI SWAPS
« Reply #1 on: November 24, 2022, 03:52:48 PM »
yes case is for TS/RL 250 anything with a 2502 - engine number. 71-75 inclusive.  Tank likely for TS90 73 was start of clam cap. tank was almost the same shape as the 250 just smaller. the 125 and 185 were more slender as was the TS100.wich replaced the 90 half way thru 73. Fender has a short rear so for a downpipe like the TS90. Hubs is any ones guess


Offline TT5 Matt

  • Legend
  • *****
  • Posts: 1538
    • View Profile
Re: SUZUKI SWAPS
« Reply #2 on: November 26, 2022, 02:48:16 AM »
brake plate dr400/500 or rm

Offline Dungar Pilot

  • C-Grade
  • **
  • Posts: 118
    • View Profile
Re: SUZUKI SWAPS
« Reply #3 on: November 29, 2022, 09:53:33 PM »
Hi Everyone,
brake plate dr400/500 or rm
Matt, there is a needle roller in the axle hole, is that what DR/RM 400 and 500 have? Not sure but the only thing I can think off it the axle must turn? The other thing that might be a clue is the spherical bearing inside the brake torque arm hole so maybe it allows for angular change?

Thanks for the suggestions

Offline TT5 Matt

  • Legend
  • *****
  • Posts: 1538
    • View Profile
Re: SUZUKI SWAPS
« Reply #4 on: December 01, 2022, 12:14:22 AM »
yeah my dr400t has bearings in the axle hole and there abit worn though not enough to be concerned about

Offline Dungar Pilot

  • C-Grade
  • **
  • Posts: 118
    • View Profile
Re: SUZUKI SWAPS
« Reply #5 on: December 13, 2022, 09:48:26 PM »
Hi Everyone,
yes case is for TS/RL 250 anything with a 2502 - engine number. 71-75 inclusive.  Tank likely for TS90 73 was start of clam cap. tank was almost the same shape as the 250 just smaller. the 125 and 185 were more slender as was the TS100.wich replaced the 90 half way thru 73. Fender has a short rear so for a downpipe like the TS90. Hubs is any ones guess
Pokey, I had a closer look at the silver tank and I am thinking it is too big to be off a TS 90 and from memory much bigger than the TS 100 Honcho tank that I dropped off at your place a couple of years ago?

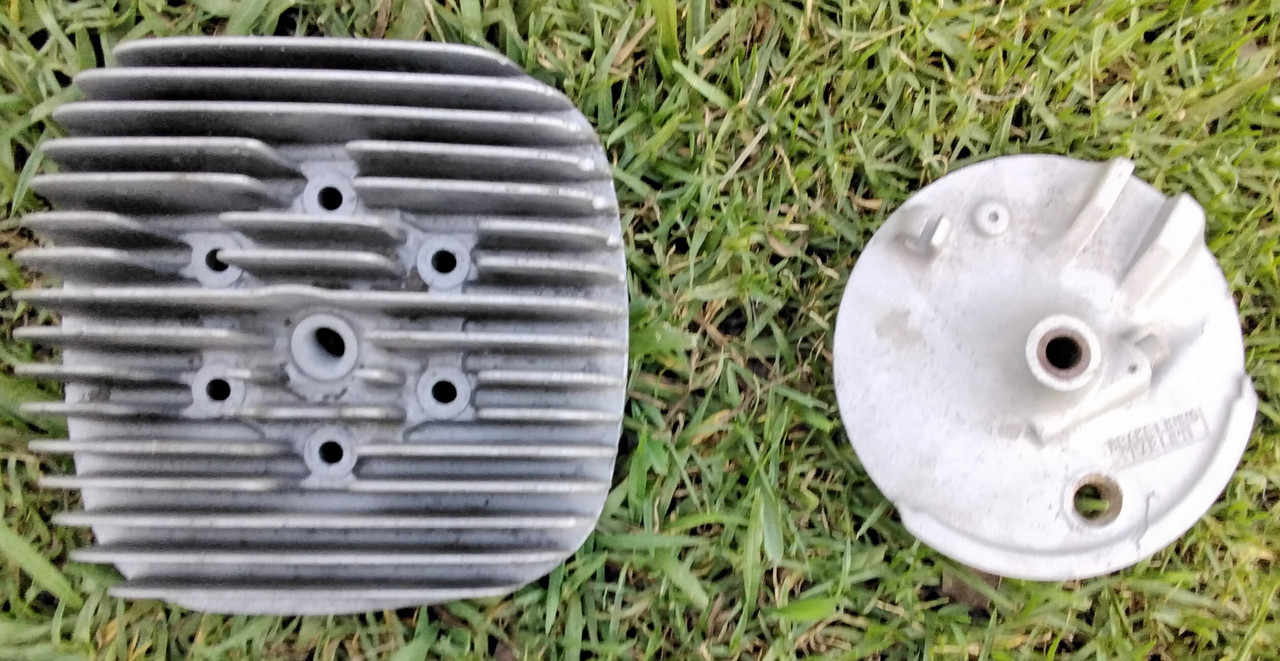

Here are some more parts that I am unsure about:


Offline pokey

  • Legend
  • *****
  • Posts: 1449
  • Arse .. Elbow. Know the difference
    • View Profile
    • FB
Re: SUZUKI SWAPS
« Reply #6 on: December 14, 2022, 12:12:31 AM »
Could be the angle and it is a 250 tank.  Clam cap with badges 73 Clam cap no badge 74/75  76 was a different shape.
 That head Im not certain but the 250 stock bore is 70 and single plug says RM so thats a best guess. The RL (single plug)  and all the TS have the back RH corner cut away.

Offline Tomas

  • A-Grade
  • ****
  • Posts: 321
    • View Profile
Re: SUZUKI SWAPS
« Reply #7 on: December 14, 2022, 08:17:51 AM »
Head is no later than 78 RM 125. 79-80 RM 125 had no step.

Offline pokey

  • Legend
  • *****
  • Posts: 1449
  • Arse .. Elbow. Know the difference
    • View Profile
    • FB
Re: SUZUKI SWAPS
« Reply #8 on: December 14, 2022, 05:21:27 PM »
I thought it may have been an A model TS185 but after dragging one out and measuring @ 64mm so yours is larger so has to be bigger than 185. A 125 would be 54mm and later 56mm. Looks very much like a 76 RM250 so its close to that

Offline sleepy

  • Legend
  • *****
  • Posts: 803
    • View Profile
Re: SUZUKI SWAPS
« Reply #9 on: December 14, 2022, 07:45:56 PM »
My guess is RM125B. They didn't have a squish band so best to measure to edge of combustion chamber to get an idea of the bore size.

Offline Dungar Pilot

  • C-Grade
  • **
  • Posts: 118
    • View Profile
Re: SUZUKI SWAPS
« Reply #10 on: December 18, 2022, 02:46:53 PM »
Hi Everyone,
My guess is RM125B. They didn't have a squish band so best to measure to edge of combustion chamber to get an idea of the bore size.
Here is another photo showing overall size of the head, not super clear but 55 mm is what I make it to be. Not having a matching cylinder makes it a little more challenging to identify but all of the fins are complete and not cut away.

Thanks for your help!

Offline John Orchard

  • Legend
  • *****
  • Posts: 3045
  • ^^^ July 1984
    • View Profile
Re: SUZUKI SWAPS
« Reply #11 on: December 19, 2022, 12:55:22 PM »
My guess is RM125B. They didn't have a squish band so best to measure to edge of combustion chamber to get an idea of the bore size.


Agreed.
Johnny O - Tahition_Red factory rider.

Offline Dungar Pilot

  • C-Grade
  • **
  • Posts: 118
    • View Profile
Re: SUZUKI SWAPS
« Reply #12 on: March 01, 2023, 09:18:10 PM »
Hi Everyone,

Just tidying up today revealed another head that does not fit any of my bikes:


Anyone know what it is off? Yeah I know I should have measured it....
Thanks for looking

Offline John Orchard

  • Legend
  • *****
  • Posts: 3045
  • ^^^ July 1984
    • View Profile
Re: SUZUKI SWAPS
« Reply #13 on: March 01, 2023, 09:29:32 PM »
What does the bore measure?
Johnny O - Tahition_Red factory rider.

Offline sleepy

  • Legend
  • *****
  • Posts: 803
    • View Profile
Re: SUZUKI SWAPS
« Reply #14 on: March 02, 2023, 11:51:05 AM »
With that savage cutaway for the exhaust it's got to be an RL250 head. They would be 70mm bore from memory.
